得普技术（广东）有限公司

DPI Technology (Guangdong) Co.Ltd

3.1馆｜C201

前沿产品

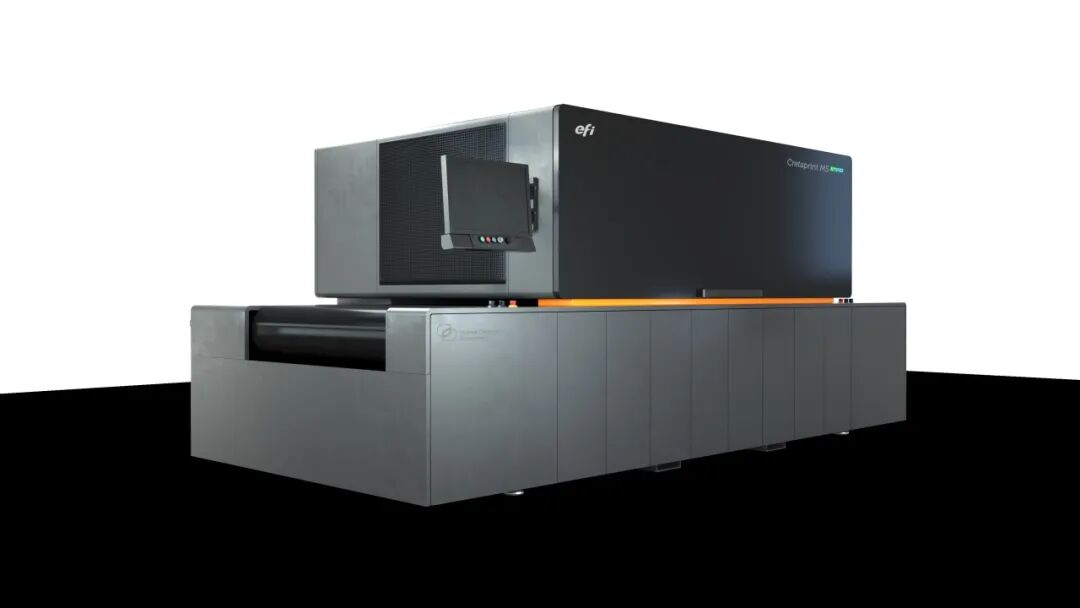

01 第5代EFI CRETAPRINT

第5代EFI CRETAPRINT是一款专为高强度的工业应用而设计的数码陶瓷打印机。它独有的设计与基于最新按需喷墨技术的系统相结合，必定会给您焕然一新的感觉。我们成功地成为了第一个为陶瓷行业提供喷墨装饰系统的先行者，即使是在喷头内部（压电材料内壁），该系统中的墨水也能够保持平顺一致。相比于当前的打印系统，油墨一致喷射减小了粒子沉积和堆积的可能性。

有了第5代EFI CRETAPRINT工业打印机，您就可以获得更加浓烈的色彩。它最高能够使用比当前系统黏性大五倍的油墨工作。

第5代EFI CRETAPRINT配置了支持灰度打印的集成系统，该系统已经过验证，让其能够使用不同体积的墨滴打印，相对于所有点都使用相同体积墨滴的二进制打印，它可提供更清晰的图像。

第5代EFI CRETAPRINT经过专门设计，让陶瓷制造商能够选择最适合其当前生产要求的配置并让初始投资产出最大效益。可以在4个至12个打印通道进行选择，使用SEIKO和Dimatix以打印头时的打印宽度为212mm至最大1440mm（具体取决于型号）。

凭借其模块化设计，选择配置后，它可完全扩展至所需的打印宽度（在不超过其限值的情况下）， 以及打印通道数量。 这些通道经过专门设计，可以非常简单地拆解下来或后期安装。

另外， 打印机上安装的新型双排瓷砖打印系统允许一台机器上同时存在两条生产线， 允许多种打印设计、瓷砖大小和独立打印及工作模式。

双瓷砖打印系统是默认配置。将打印机设置为一条或两条生产线工作是一项简单的任务，这样可以让您根据生产需求来调整系统。

此外，打印机软件包含色调调整系统TAS工具，它允许对设计色调和浓度进行较小的调整， 而不停止打印或中断生产。

The 5th generation EFI CRETAPRINT is a digital ceramic printer designed for high-intensity industrial applications. Its unique design combined with a system based on the latest drop-on-demand inkjet technology is sure to give you a brand new look. We succeeded in being the first to provide the ceramic industry with an inkjet decoration system in which the ink remains smooth and consistent even inside the nozzle (the piezoelectric material lining). The consistent jetting of ink reduces the potential for particle deposition and build-up compared to current printing systems.

With the 5th generation EFI CRETAPRINT industrial printer, you can achieve even more intense colors. It can work with inks that are up to five times more viscous than current systems.

The 5th generation EFI CRETAPRINT is equipped with an integrated system that supports grayscale printing, which has been proven to be able to print with different volumes of ink droplets, which provides better performance than binary printing that uses the same volume of ink droplets for all points. Clear image.

The 5th generation EFI CRETAPRINT is specifically designed to allow ceramic manufacturers to choose the configuration that best suits their current production requirements and maximize the return on their initial investment. Can choose from 4 to 12 printing channels, with print widths from 212mm to a maximum of 1440mm using SEIKO and DIMETIX print heads (Depending on model).

Thanks to its modular design, it is fully scalable to the desired print width (without exceeding its limits), as well as the number of print lanes, depending on the configuration chosen. These channels are designed to be easily dismantled or installed later.

In addition, the new dual-row tile printing system installed on the printer allows two production lines to exist simultaneously on one machine, allowing a variety of print designs, tile sizes and independent printing and working modes.

A dual tile printing system is the default configuration. Setting up your printer to work on one or two production lines is a simple task, allowing you to tailor the system to your production needs.

In addition, the printer software includes the Tone Adjustment System TAS tool, which allows minor adjustments to design tone and density without stopping printing or interrupting production.

公司简介

得普技术是汇成控股全资子公司，作为一家技术创新型企业，凭借深耕数码印刷行业多年的专业技术团队的研发能力，和对工业化数码印刷需求的深刻理解及全球供应链体系的支持，致力于高速工业数码印刷设备的研发和生产，为建材、纺织及包装等不同工业领域提供创新数码印刷流程解决方案。2024年，EFI集团将与DPI在陶瓷建材工业领域就Cretaprint快达平喷墨打印机的本土化研发制造、销售和售后服务等业务展开深度合作。DPI将全面接管EFI（Cretaprint快达平）全球性业务，并服务于全球客户。

DPI is a company of Cremix group, we are committed to the R&D, production, sales and after-sales service of  mid-to-high-end industrial-grade digital inkjet equipment, providing a complete set of solutions for ceramics, textile, packaging, building materials and other industrial fields. In 2024, EFI Group will launch in-depth cooperation with DPI in the ceramic & building materials industry on the localized R&D, manufacturing, sales and aftre-sales service of Cretaprint inkjet printers. DPI will take over EFI's(Cretaprint) global business and serve customers around the world.
