3D Controls Co., Ltd.

Hall3.1｜C315 - 3

前沿产品/Cutting-edge products

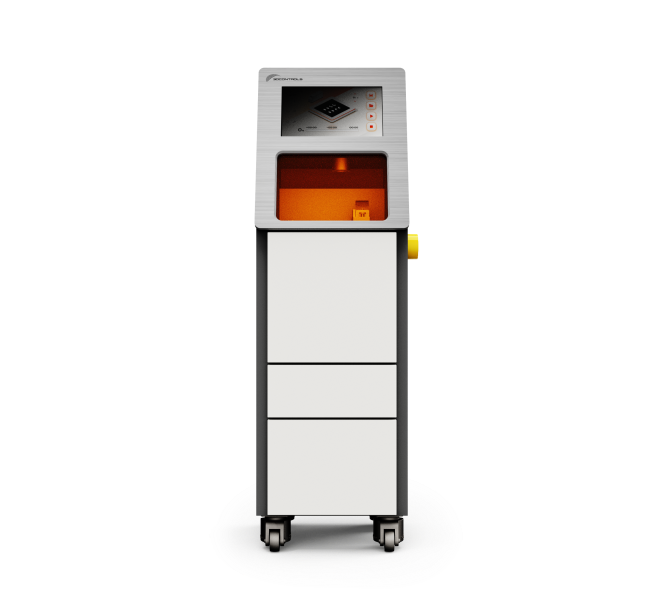

01 3D Printer TD6+

Build Size 120 x 68 x 45 mm
Layer Thickness 25 ~ 100μm

Pixel Pitch 72μm

Product Size 515 x 510 x 1655 mm

Electricity AC 200 ~ 240V, 50/60Hz

Innovative technology for manufacturing ceramic parts

The DLP (Digital Light Processing) engine with top-down surface survey technique enables fast and precise part manufacturing that surpasses traditional processing methods such as milling and CIM.

Key points of DLP engine technology

- Precision : Capable of producing precise prints with top-down surface survey technology using Full HD high resolution.

- Repeatability : Provides consistent production reliability in any environment.

3D打印构建尺寸 120 x 68 x 45 mm
层厚25～100μm
像素间距72μm
产品规格 515 x 510 x 1655 mm
电力 交流200～240V，50/60Hz

提供突破现有技术限制的创新陶瓷3D打印解决方案。
利用高分辨率 DLP引擎制作陶瓷零件的创新技术

采用下沉式面状照射技术的 DLP（Digital Light Processing） 引擎超越传统的铣削、CIM等电动加工方式，实现快速、精密的零件制造。
DLP引擎技术的关键点
- 精度：采用全高清高分辨率的下沉式面状照射技术，可生产精密的打印件。
- 重复再现性：在任何环境中提供统一的制作可靠性。

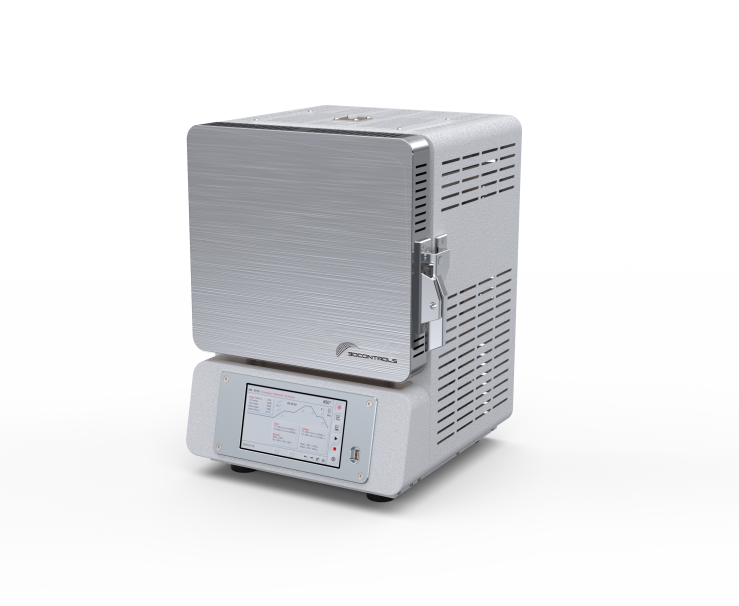

02 Furnace R0

Product Size 324 x 391 x 527 mm

Inner Size 110 x 110 x 100 mm

Weight 35 kg

Electricity AC 220V, 50/60Hz

Temperature Max 1600°C

By processing debinding and sintering in a single process, it ensures convenience and consistency in the sintering process.

产品规格324 x 391 x 527 mm
内部尺寸 110 x 110 x 100 mm
净重35 kg
电源 AC 220V，50/60Hz
温度范围 最大1600°C
通过单一工艺处理脱脂和烧结，确保烧结过程的便利性和一致性。

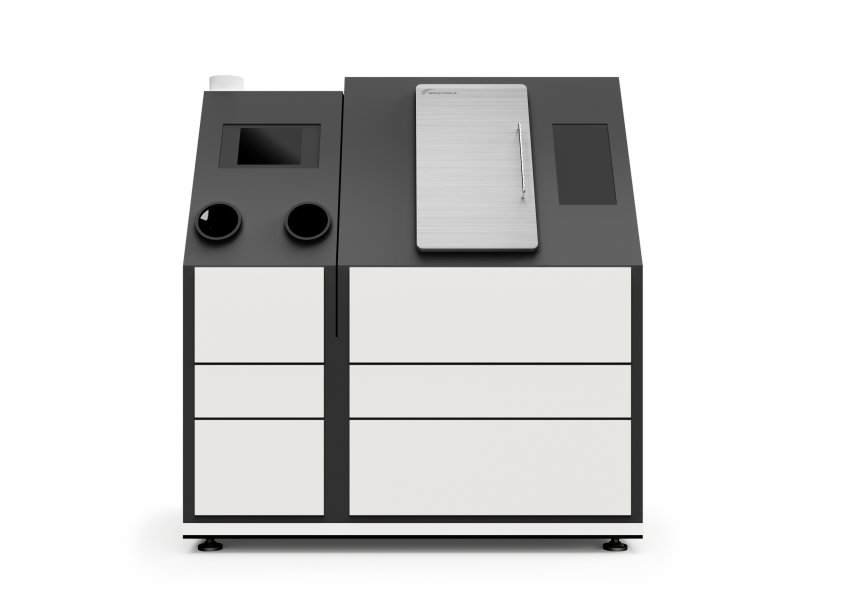

03 Cleaner C1

Product Size 660 x 545 x 1210 mm

Inner Size 610 x 380 x 410 mm

Nozel Pressure 0.2 ~ 0.7 MPa

Recommended

Air Compressor (4horsepower, 7Bar, 20l/min), dedicated cleaning solution.

By applying a direct injection nozzle control system, damage to the green body is minimized during cleaning process.

产品规格 660 x 545 x 1210 mm
内部尺寸 610 x 380 x 410 mm
诺泽尔压力 0.2 ~ 0.7 MPa
推荐的空气压缩机（4马力，TBar, 20&/min），使用专用清洁液

采用直喷喷嘴控制系统，最大限度地减少清洗过程中对生坯的损坏。

04 Polishing Machine P1

Product Size 1514 x 925 x 1654 mm

Inner Capacity 3.5 L Barrel x 4

Electricity AC 220V, 50/60Hz

Spin Speed MAX 170 RPM Commercial 140 RPM

Through a polishing process specialized
for ceramics, it provides an excellent surface finish optimized for the application.

产品规格 1514 x 925 x 1654 mm
内在能力 3.5 L Barrel x 4
电力 AC 220V，50/60Hz
自旋速度 最大 170 RPM

常用 140 RPM
通过陶瓷专用的研磨工艺，提供卓越的表面光洁度，以优化用途。

公司简介/Company Profile

3D Controls Co., Ltd. is a ceramic printing and materials development company established in 2014.

We have independently developed a 3D printer based on ceramic resin materials and high-precision DLP engines optimized for additive manufacturing, hold 23 technology patents, and have been certified as a core strategic tech company and innovative product by the Korean government.

Furthermore, we have a product line-up including cleaning machines, dedicated sintering furnaces, and polishing machines for the full cycle of processing completely sintered ceramic bodies.
