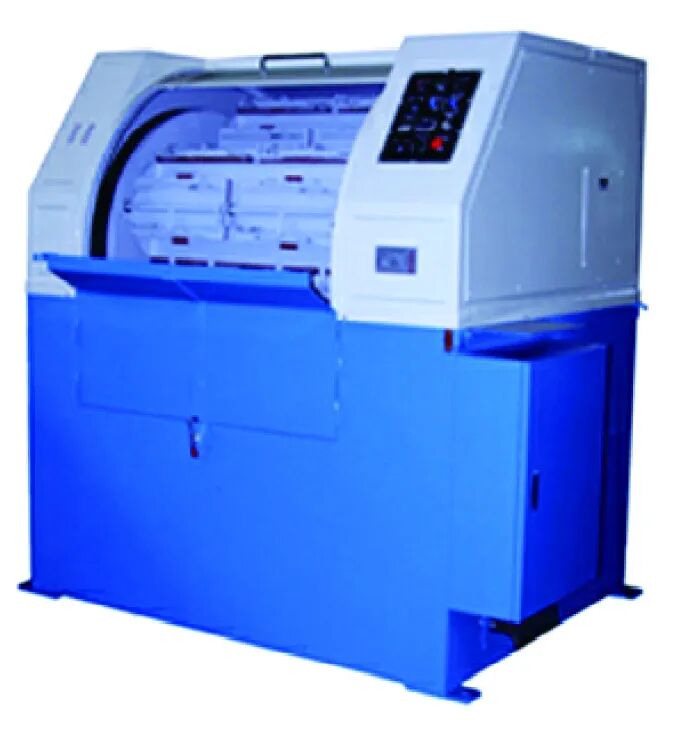

This is a finishing machine that uses the centrifugal force which occurs while the axis are rotated at high speed by attaching a hexagonal barrel tank in the symmetric position of the turret. When the turret is rotated over 60R.P.M, the centrifugal force and pressure are produced in the MASS within the barrel tank. The barrel tank that was designed to rotate in the opposite direction against the turret can do the finishing work in a short time by producing strong pressure and friction during engineering works mixed with the barrel media in the most distant inner wall of the circumference by the centrifugal force. The centrifugal finishing machine is good for small products, so it can do delicate finishing work in relation to precision products. It can do the finishing on super-small components or small products which can easily be broken or bent without changing their shape or without damage through the proper and correct RPM.

This is a finishing machine that applies the vibration and screw motion that occurs because of the unbalanced weight that is fixed to both ends of a motor and is most widely used for the barrel finishing area.

Engineering works mixed with Barrel Media do the finishing by performing friction motion within the barrel tank. They are good for rough finishing and gloss work.

Good for various surface treatments, such as removing burr and scale, treatment before coating and burnishing, in particular.

This machine is especially good for the finishing of medium and small products whose barrel media aren’t replaced frequently. If the finishing time for one time doesn’t exceed two hours, it can be more effective than a centrifuge barrel finishing machine.In the GVA type to which a screening device is attached, engineering works and barrel media are automatically selected and separated after finishing, saving labor and time.

The finishing tank of this finishing machine consists of a fixed wall and lower turret. If the turret rotates and powerfully pushes the barrel media and components to the fixed wall, the barrel media and components which hit the wall return to the turret, and then the turret pushes them to the wall again. During this process, the barrel media and components form a spiral whirlpool, creating a strong cutting power or gloss through a rubbing power. This machine hasn’t become popular despite such features, because residues of barrel media or components were caught in the cap between the fixed wall and turret, causing problem s. In addition, the cap was easily worn, so users experienced problems in the follow-up service, including replacement of PU lining. This machine that is made by our company, however, is really innovative because such problems have been perfectly solved.
